HAWA-Junior 80/GP, partial set for 1 glass sliding door

The HAWA-Junior 80/GP is a hardware with point fixing for elegant all-glass sliding doors up to 80 kg.
Product features:
- smooth and quiet running
- Rail buffer with adjustable retainer
- height adjustable without removing the glass door
- low installation height
- the suspension is mounted from the inside and therefore offers protection against burglary
SoftMove 80: The new soft closing mechanism can be used on both the closing and opening sides. Completely invisibly integrated into the track, the soft closing mechanism gently slows the sliding door and pulls it to its final position.
- Minimum door width, damped on one side: 690 mm
- Minimum door width, dampened on both sides: 1030 mm
- high-quality hydraulic metal damper with 14 mm diameter guarantees high quality and durability

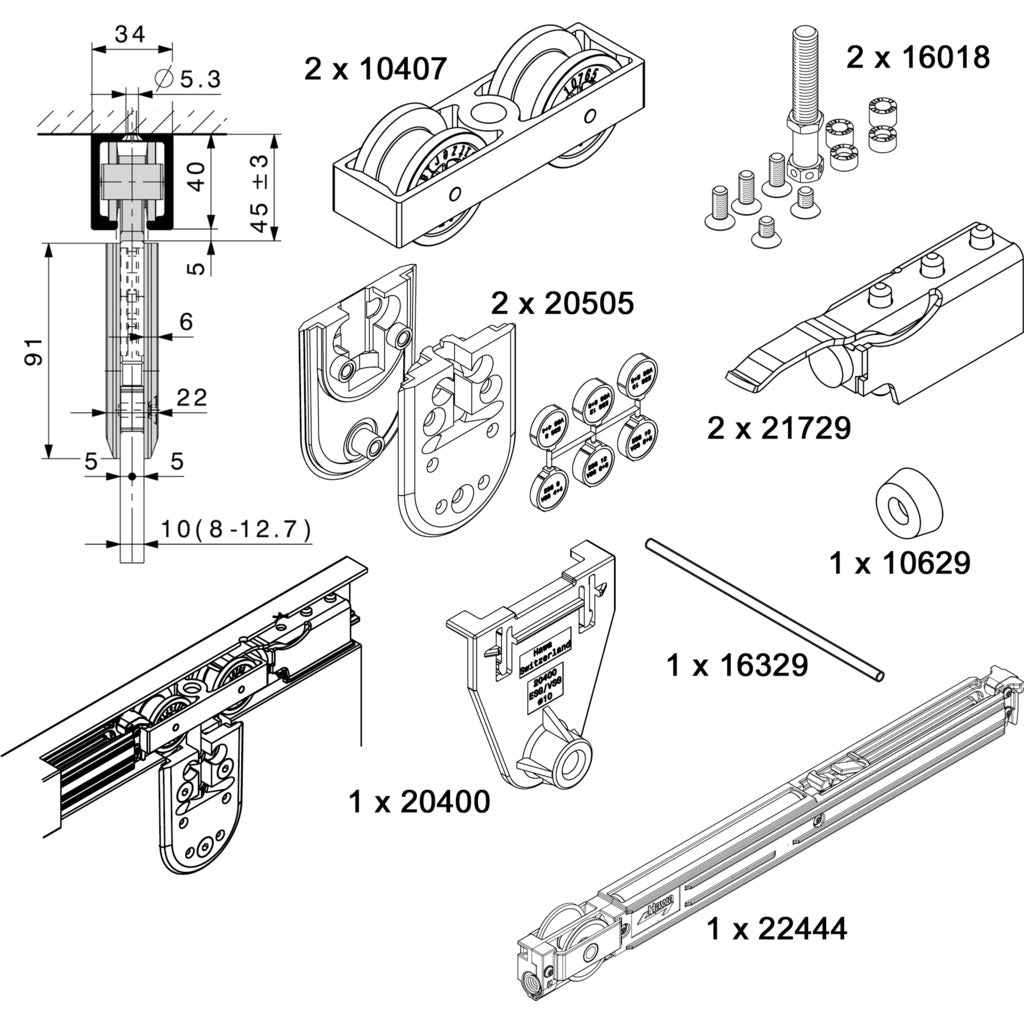

Set consisting of:
- 2 x 2-wheel drives, M10, with plastic rollers (10407)
- 2 x M10 suspension screws and mounting screws (16018)
- 2 pcs. point fixings with glass holder ESG/VSG (20505)
- 2 pcs. rail buffers with adjustable retainer (21729)
- 1 disposable drilling jig, ESG/VSG (20400)
- 1 rubber buffer for screwing on (10629)
- 1 x height adjustment pin (16329)
- 1 SoftMove 80 damper pull (22444)
Note: Tracks, floor guides, and cover caps must be ordered separately. For two-door systems, two single-door sets must be ordered.

• Brand: Hawa
