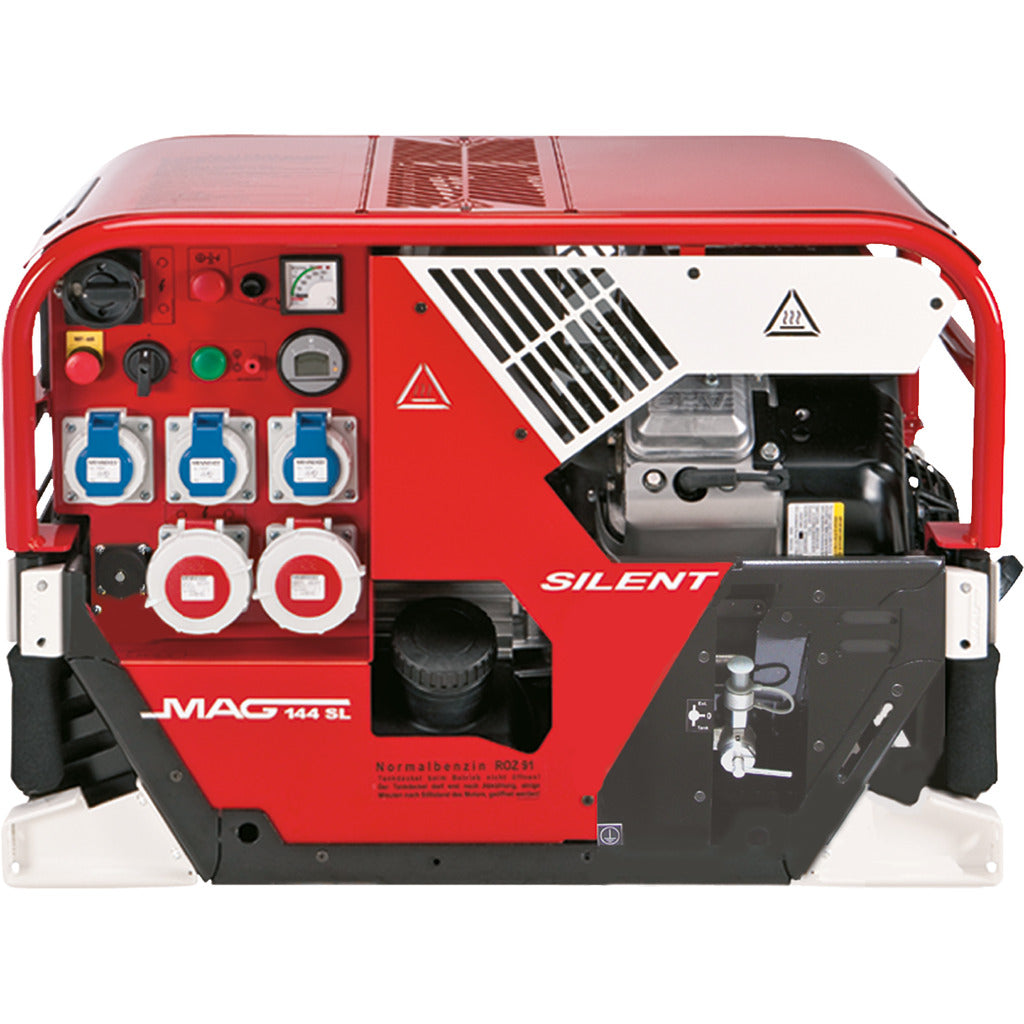

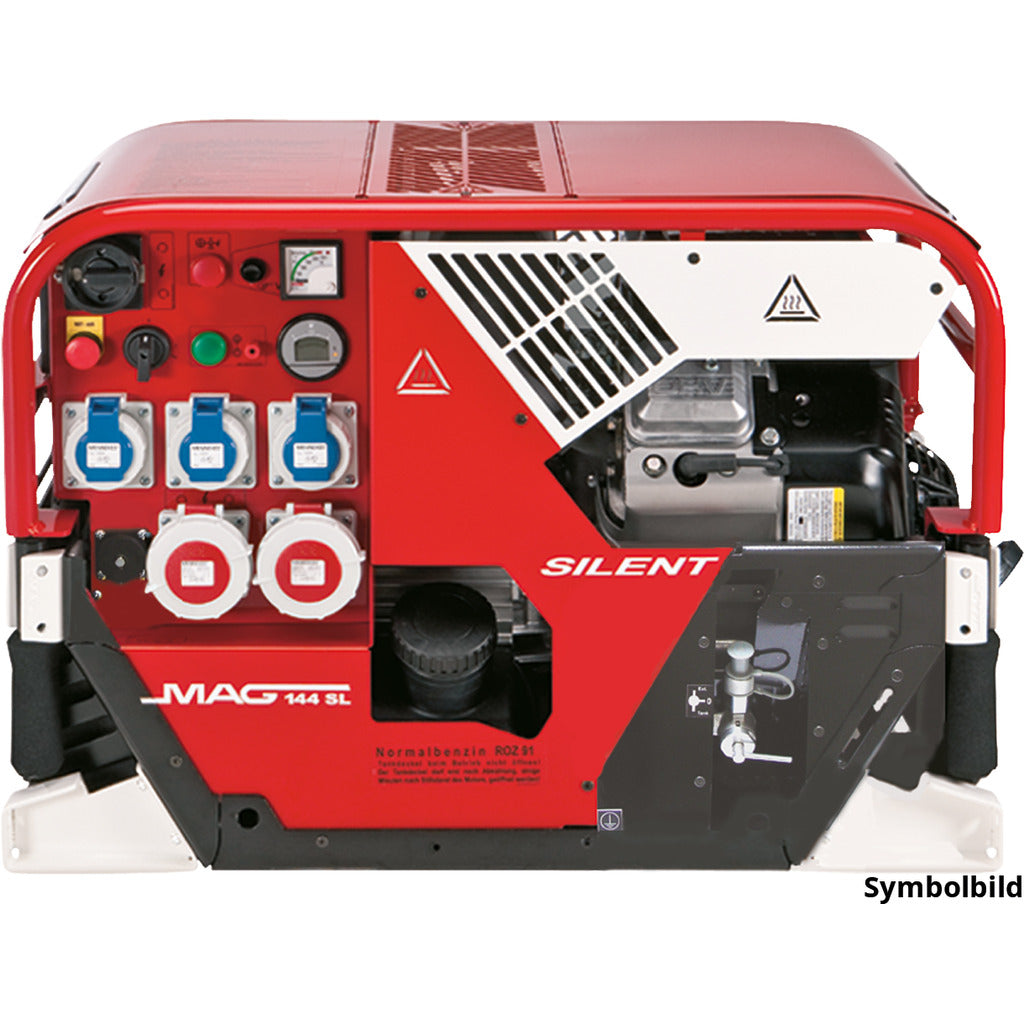

Fire service generator MAG 144 SL-R / 11 kVA / according to DIN 14685-1

• Fire service generators are characterized by particularly high power density in small dimensions
• with plastic tank underneath
• Captive tank cap - with screw thread and ventilation function
• Tank made of high-strength XPE material - capacity approx. 12 liters, with integrated tank sender and roll-over valve
• Tool-free hinged maintenance cover with thermally embossed absorption mat
• Stainless steel muffler for extra quiet operation
• Combustion engine and generator are thermally separated by aluminum radiant panels and special glass fiber mat
• DIN exhaust nozzle with spark strainer
• fold-out, non-slip and cold-insulating carrying handles in ergonomically correct carrying position; exhaust air vents in the lid for thermal safety

Show:

• Insulation monitoring with display and acoustic warning
• Load display: total / single-phase overload via LED
• Voltage display via switch button
• Pole reversing switch for right/left rotation, mechanically locked
• Emergency/Stop button with acoustic warning
• Main switch for electric start, protective conductor test device
• LCD fuel gauge, LED reserve indicator and operating hour meter

Technical data:

• Sound power: 95.8 LWA / Protection class: min. IP 44 / Running time: approx. 2 hours

Technical data generator (synchronous):

• Type: DWG (BL4) 13/7-EE with electronic controller / brushless
• Protection class: IP 54 / Frequency: 50 Hz / Rated current at 400 V: 16.3 A
• Voltage: 3 x 230V / 2 x 400V
• Voltage stability: +/-1% at 230 V / 400 V at 3000 rpm +6% / -10%

Engine technical data:

• Emissions standard: 2002/88/EC
• Equipment: recoil and 12 V electric starter, three-way valve, oil pressure monitoring system

Equipment:

• 1x emergency/stop button with acoustic warning
• 1x insulation monitoring with acoustic and visual warning including reset button for horn ISO
• 2x pressure-waterproof three-phase sockets CEE 16 A / 400 V IP68
• 3x watertight protective contact sockets 16 A / 230 V IP68
• 2x circuit breakers 16 A / 4-pole
• 3x circuit breakers 16 A / 2-pole
• 1x 12 V socket for external power supply
• 1x voltmeter including load display (illuminated) via switch button
• 1x push button voltmeter
• 1x protective conductor test device
• 1x start/stop switch
• 1x instrument cluster with operating hours counter and fuel gauge including warning LED at 20% fuel remaining
• 1x polarity reversing switch
• Tool bag with contents

• Dimensions (l x w x h): 820 x 440 x 580 mm
• Weight: 145 kg
• Brand: MAG-MOTOREN Gesellschaft mbH
• Engine: Briggs & Stratton
• Engine type: 18 HP Vanguard / 2-cylinder OHV / 4-stroke
