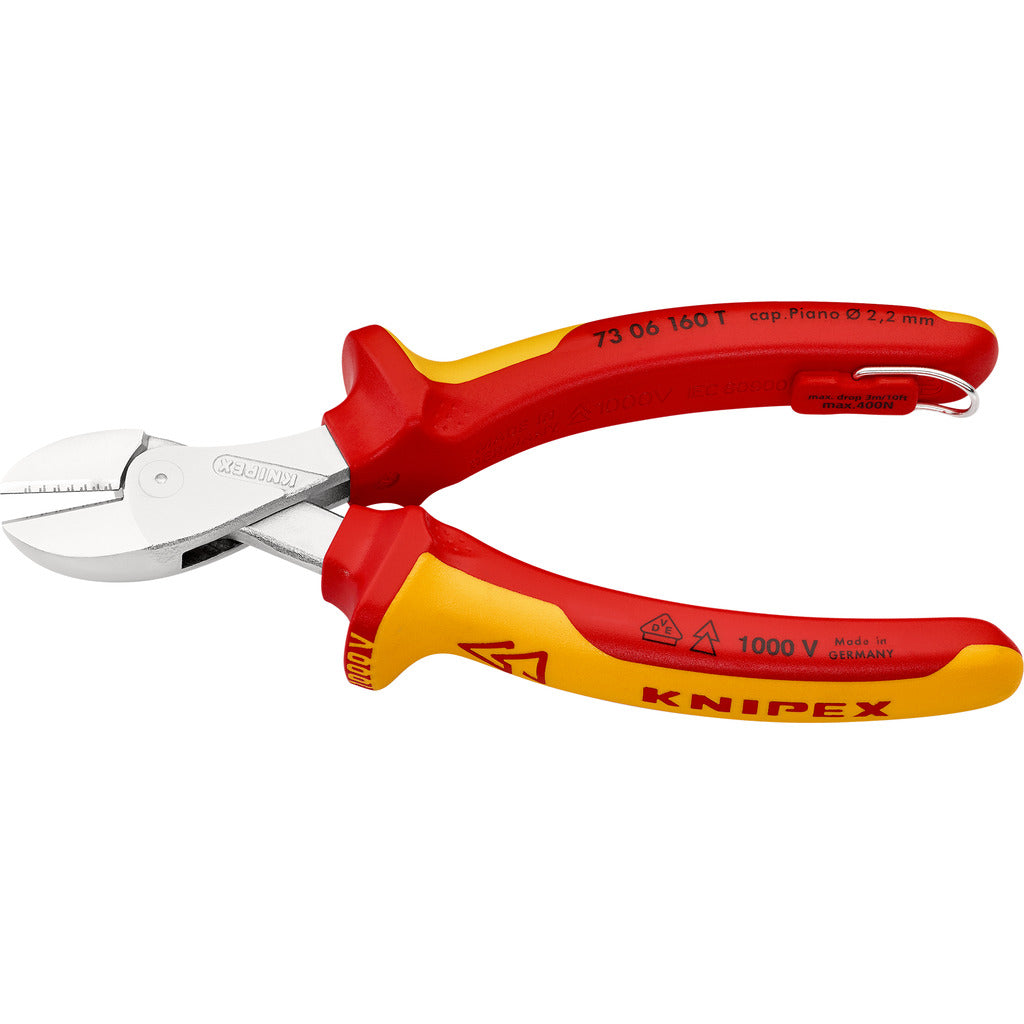

Knipex X-Cut® VDE compact diagonal cutters

• highly translated
• Precisely cuts the finest wires as well as multi-wire cables and hard piano wire
• powerful, light and universal
• High cutting performance with low effort due to optimal coordination of cutting angle and transmission ratio
• Box joint: maximum stability with low weight
• double-bearing joint axis for hard, permanent use
• large opening for thicker cables
• precise cut even with fine copper strands
• compact, weight-saving design
• universally applicable, in assembly, maintenance and production
• 40% power saving compared to standard side cutters of the same length
• Handles with multi-component covers and integrated attachment eyelet for attaching a fall protection device
• Chrome-vanadium high-performance steel, forged, multi-stage oil-hardened
• Pliers and knob chrome-plated, cutting edge with bevel

Technical data:

• DIN ISO 5749
• Cutting values soft wire: Ø 4.8 mm
• Cutting values medium-hard wire: Ø 3.8 mm
• Cutting values hard wire: Ø 2.7 mm
• Cutting values for piano wire: Ø 2.2 mm
• Cutting values copper cable, stranded: Ø 12 mm
• REACH conformity: contains no SVHC
• RoHS compliance: not applicable

• Weight: 185 g
• Length: 160 mm
• Brand: KNIPEX
