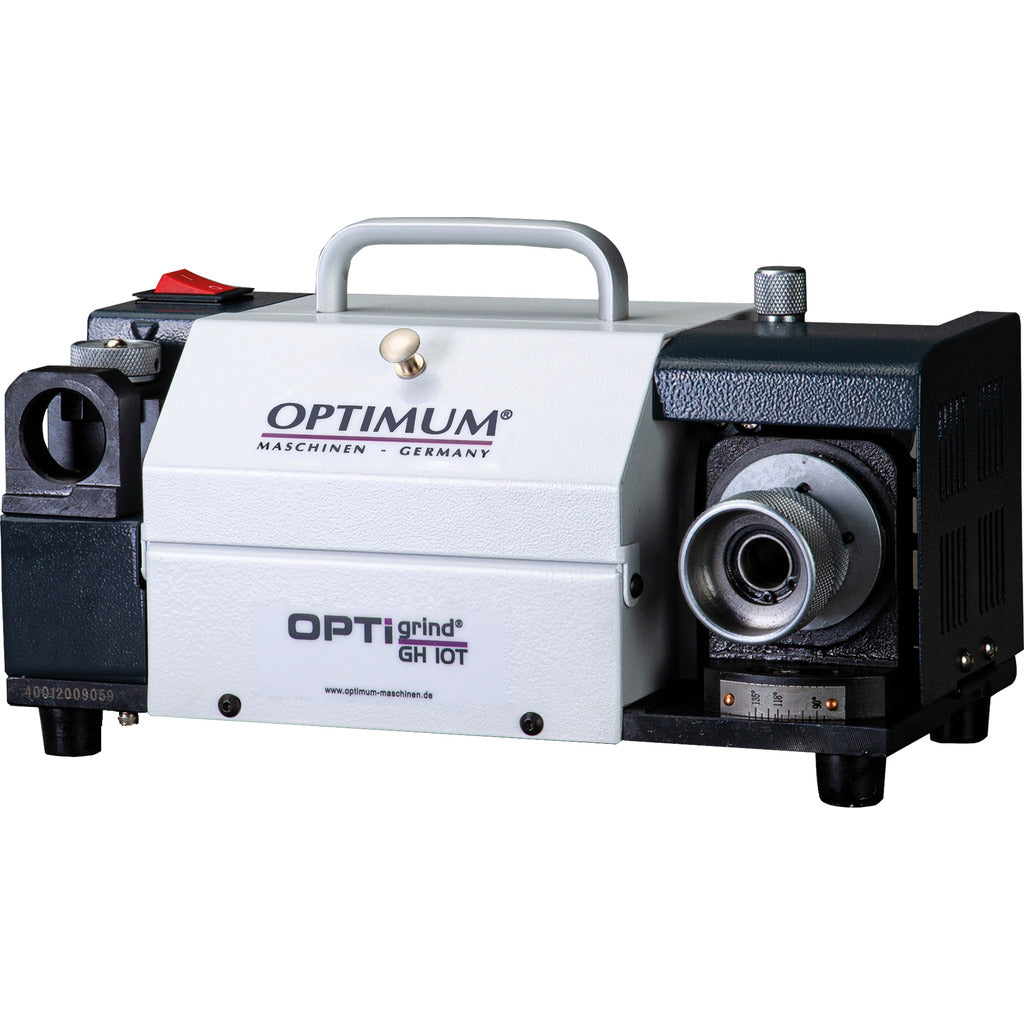

Drill grinder OPTIgrind GH 10 T
Description
Description
- ideal for grinding twist drills
- easy operation for precise and cost-effective grinding of double-edged twist drills
- Drill grinding without prior knowledge - clean, fast and precise
- easy to transport
- Steel disc coated with cubic crystalline boron nitride
- Complete equipment with ER collets inside the machine
- The cutting edges of the drill are fixed in a defined position in the collet holder using the adjustment aid and inserted into the grinding openings in a specified order in order to grind the cutting edges with a short rotational movement of the collet holder
- Grinding capacity drill bit Ø 3 - 13 mm / Angle of tip sharpening 90 - 135°
Drill:
- with blunt cutting edges
- sanded and sprayed
Included in delivery:

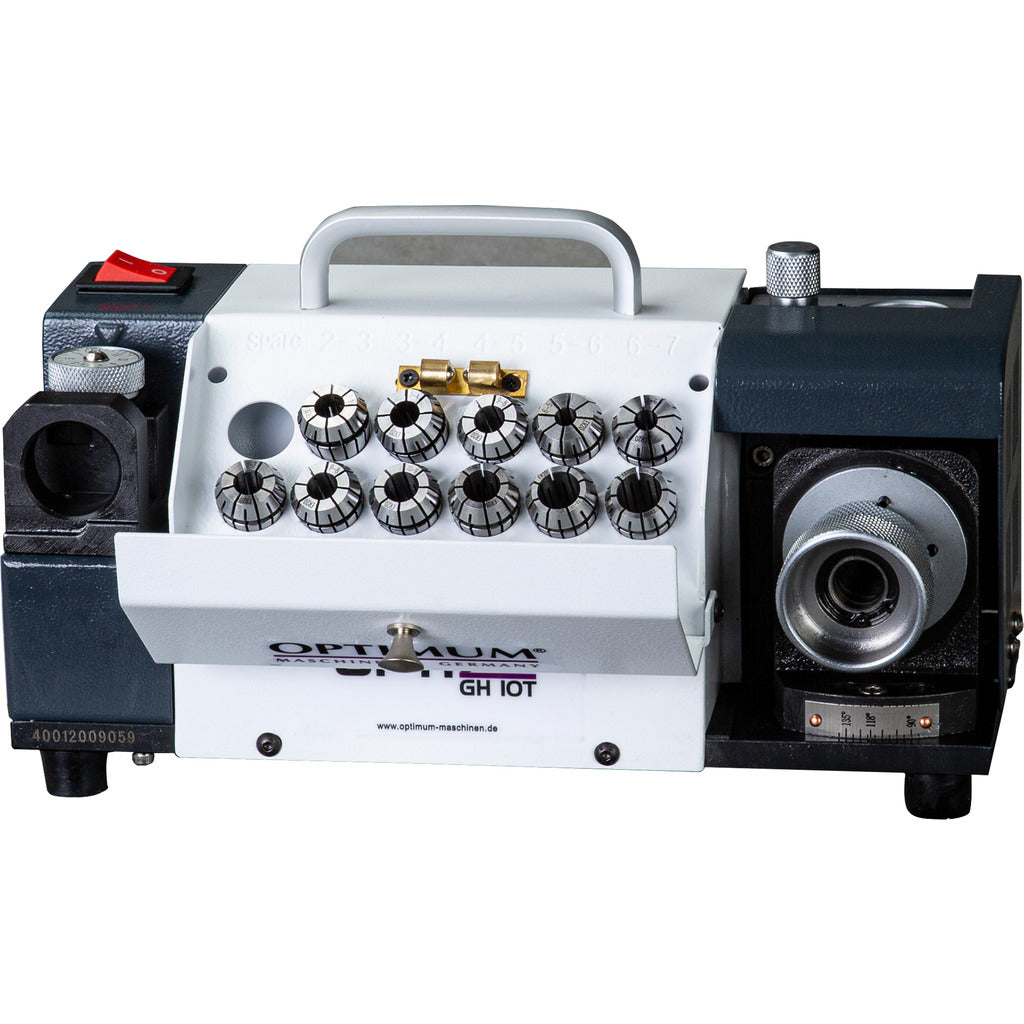

- 11 pieces ER 20 collets sizes Ø 2 to Ø 13 mm
- Dimensions (l x w x h): 310 x 180 x 190 mm
- Connection voltage: 230 V
- Max. speed: 5,300 rpm
- Weight: 9.5 kg
- Brand: OPTIMUM
- Motor power: 0.18 kW
