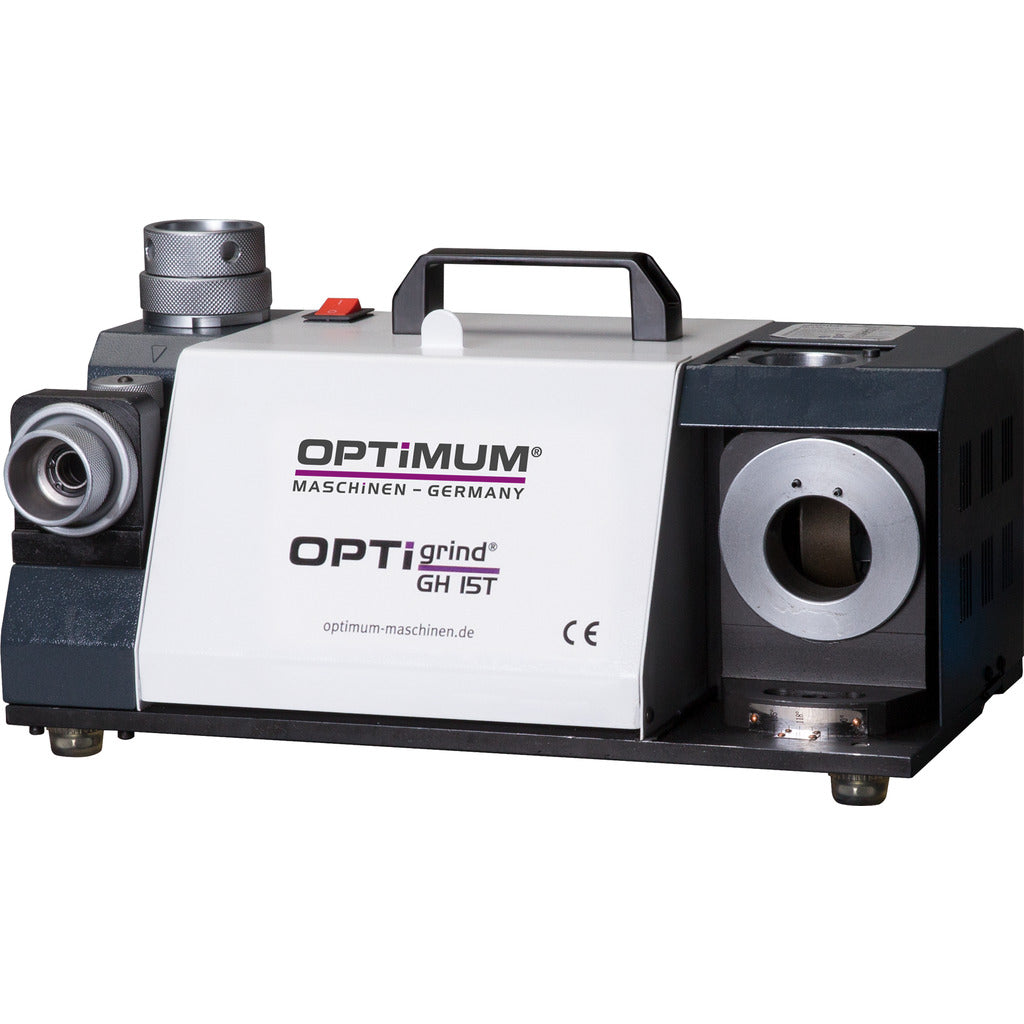

Drill grinder OPTIgrind GH 15 T
Description
Description
- ideal for grinding twist drills
- easy operation for precise and cost-effective grinding of double-edged twist drills
- Drill grinding without prior knowledge - clean, fast and precise
- easy to transport

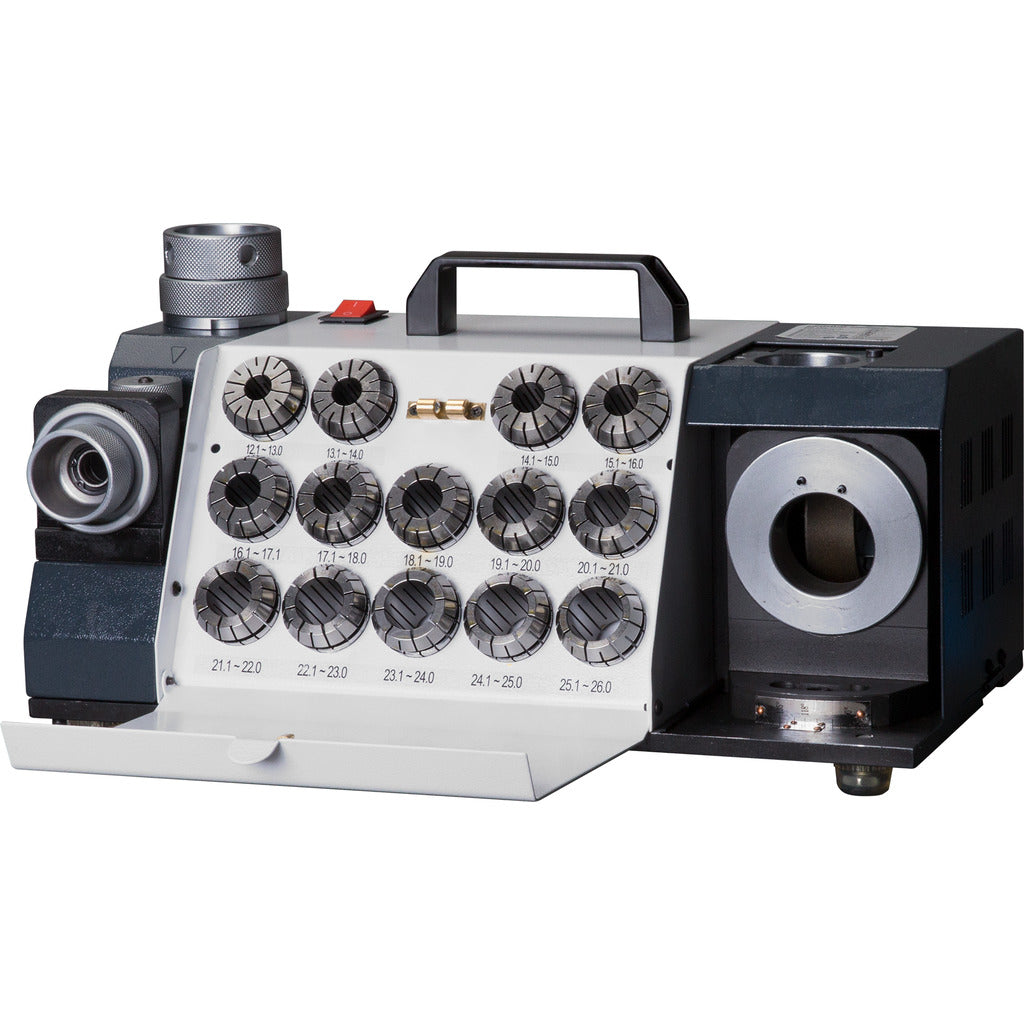

- Complete equipment with ER collets inside the machine
- The cutting edges of the drill are fixed in a defined position in the collet holder using the adjustment aid and inserted into the grinding openings in a specified order in order to grind the cutting edges with a short rotational movement of the collet holder
- Grinding capacity drill bit Ø 3 - 13 mm / Angle of tip sharpening 90 - 145°
Drill:
- with blunt cutting edges
- sanded and sprayed
Included in delivery:
- 6 pieces of collets ER 20 sizes Ø 3 to Ø 8 mm
- 22 pieces ER 40 collets sizes Ø 8 to Ø 30 mm
- Dimensions (l x w x h): 450 x 240 x 270 mm
- Connection voltage: 230 V
- max. speed: 5,000 min⁻¹
- Weight: 33 kg
- Brand: OPTIMUM
- Motor power: 0.45 kW
