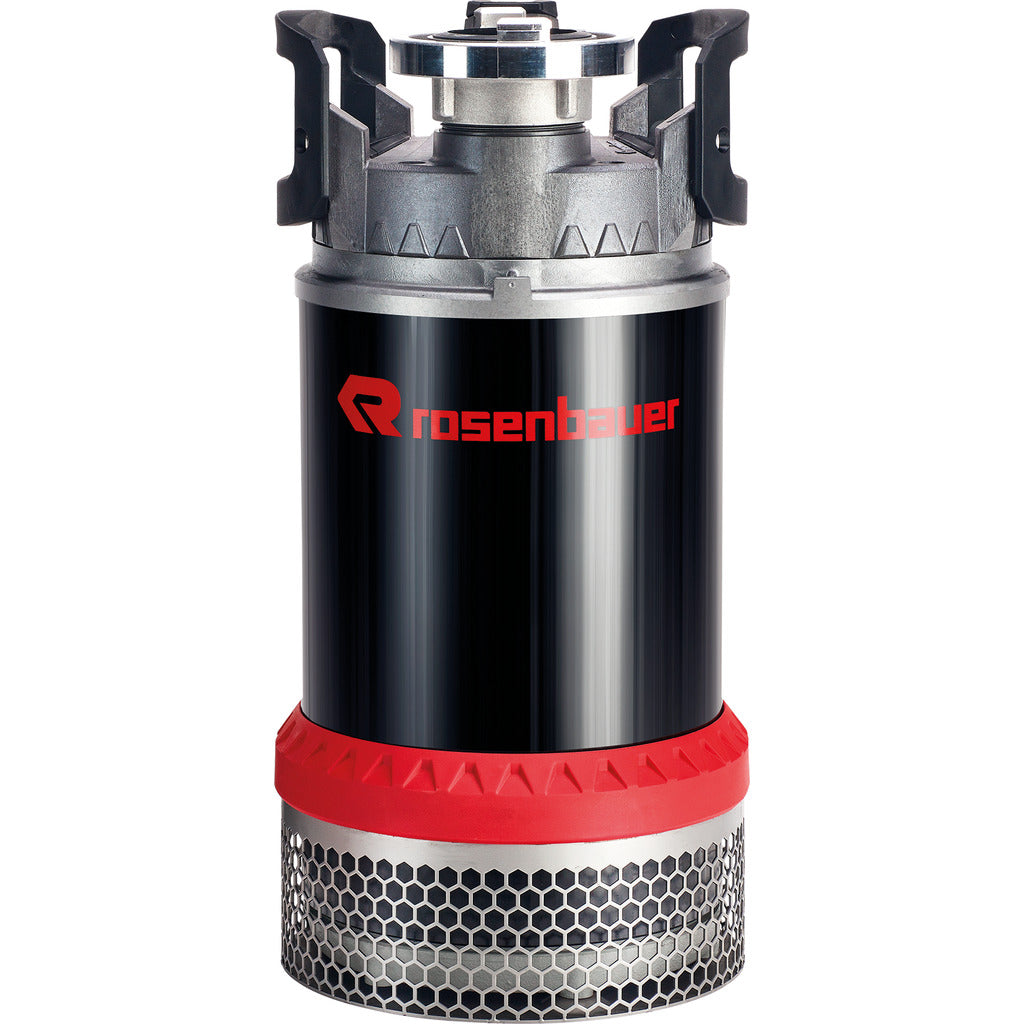

FW submersible pump "NAUTILUS" 8/1 - STORZ B

• Small pump - powerful performance, the NAUTILUS is the small disaster relief worker with a big impact
• certified according to DIN 14425 type 8/1 and ÖBFV standard sheet
• This pump is distinguished by its combination of weight, compact design and high flow rate.
• The performance of the NAUTILUS 8/1 is 17% higher than the minimum requirement at 1 bar, achieving a flow rate of 935 l/min at 1 bar and 1,330 l/min at 0 bar; it is therefore one of the most powerful pumps in its class.

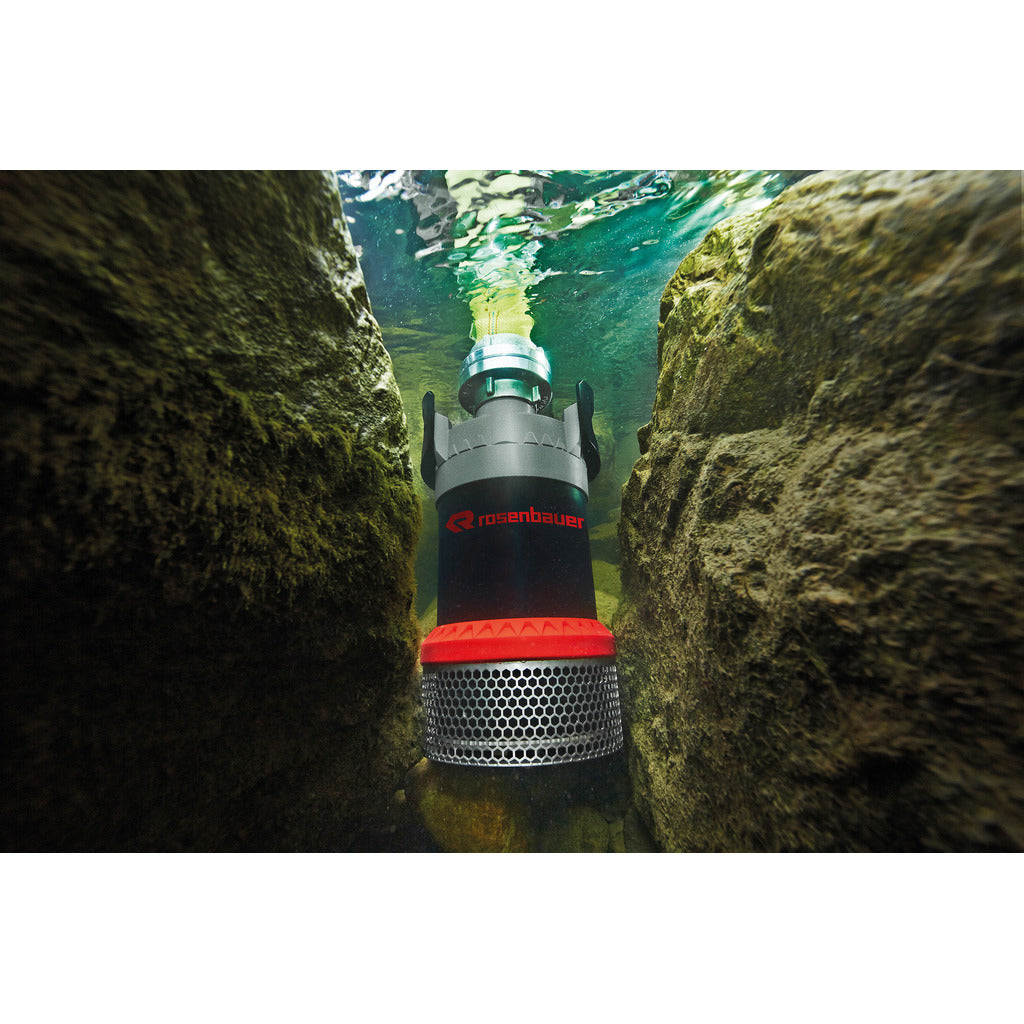

• Designed for use under the toughest conditions, the NAUTILUS also works optimally in small, cramped spaces, deep basements, underpasses, underground garages or narrow shafts.
• The integrated flat suction device allows pumping down to 8 mm of residual water; neither the suction grid needs to be removed nor does an additional device need to be mounted on the pump.
• The NAUTILUS 8/1 pumps contaminated water with a particle size of up to 10 mm.

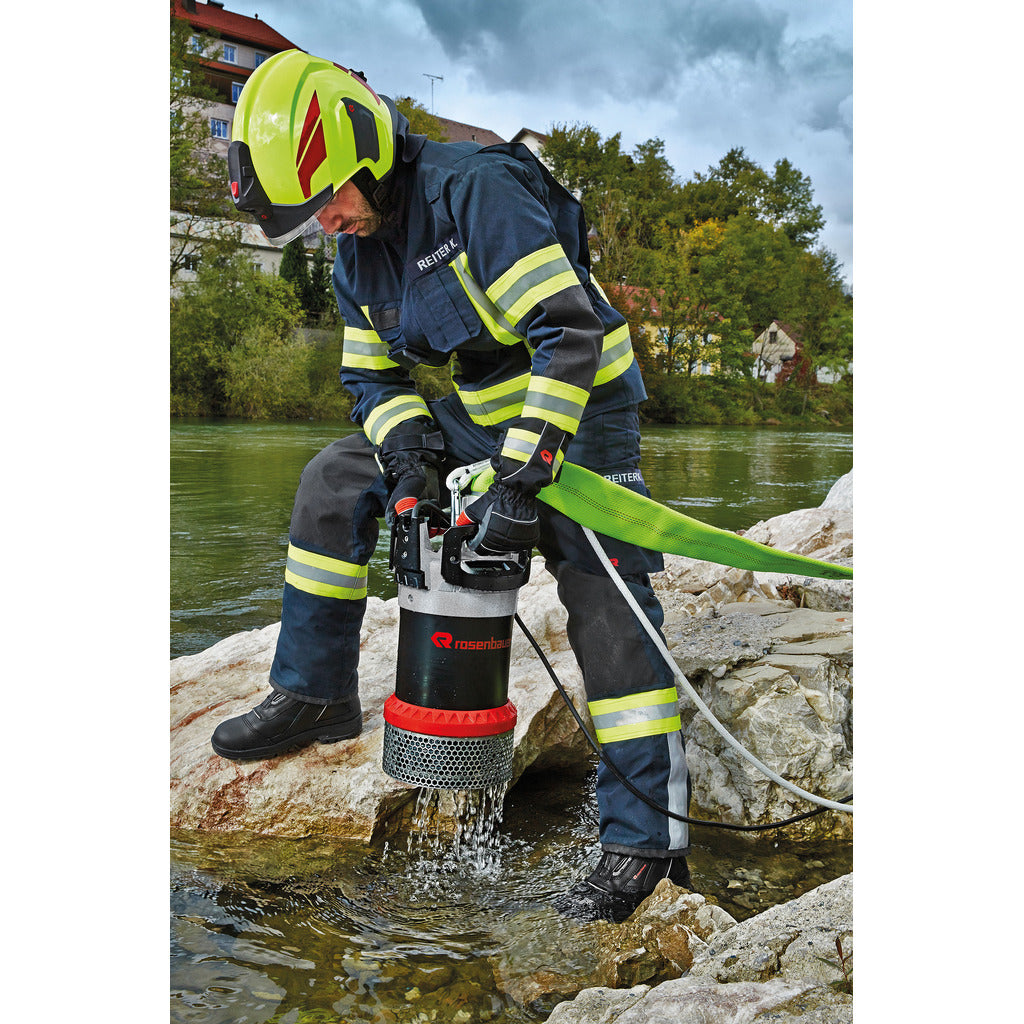

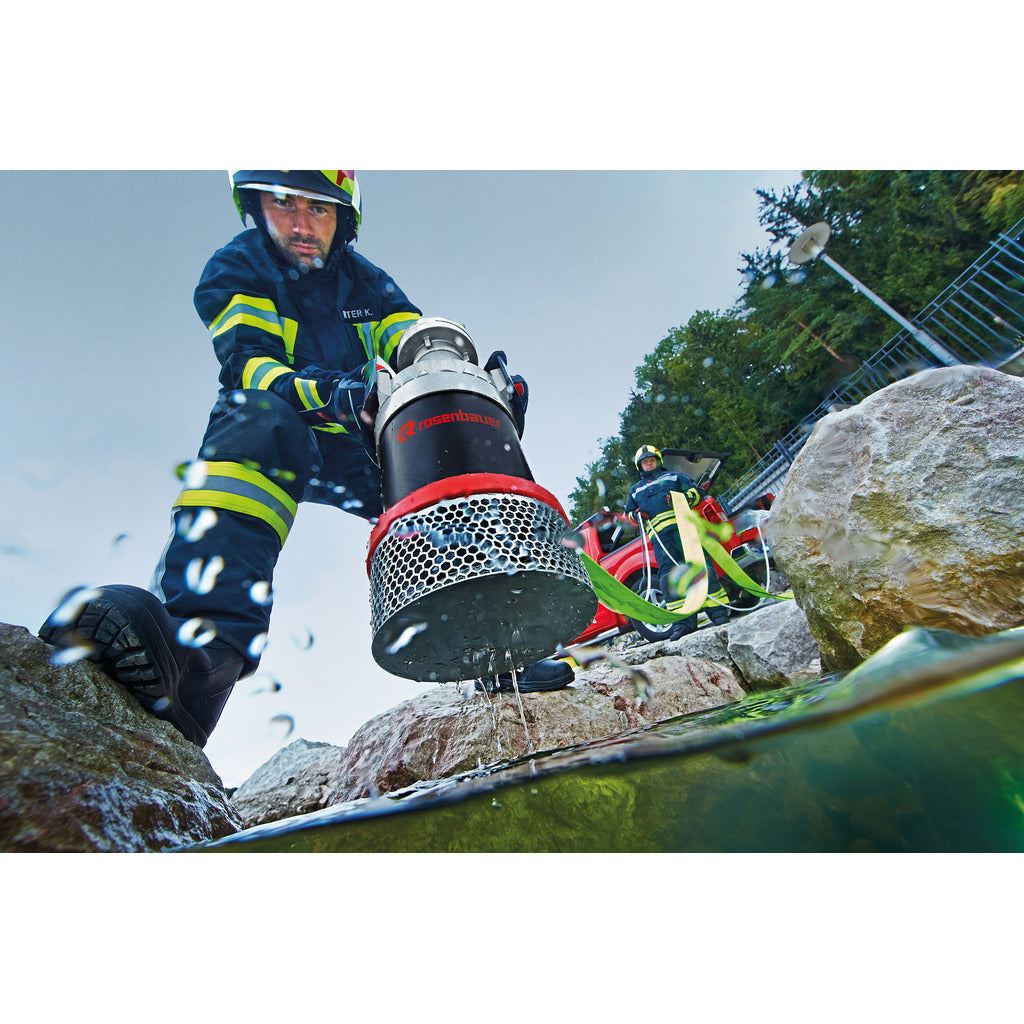

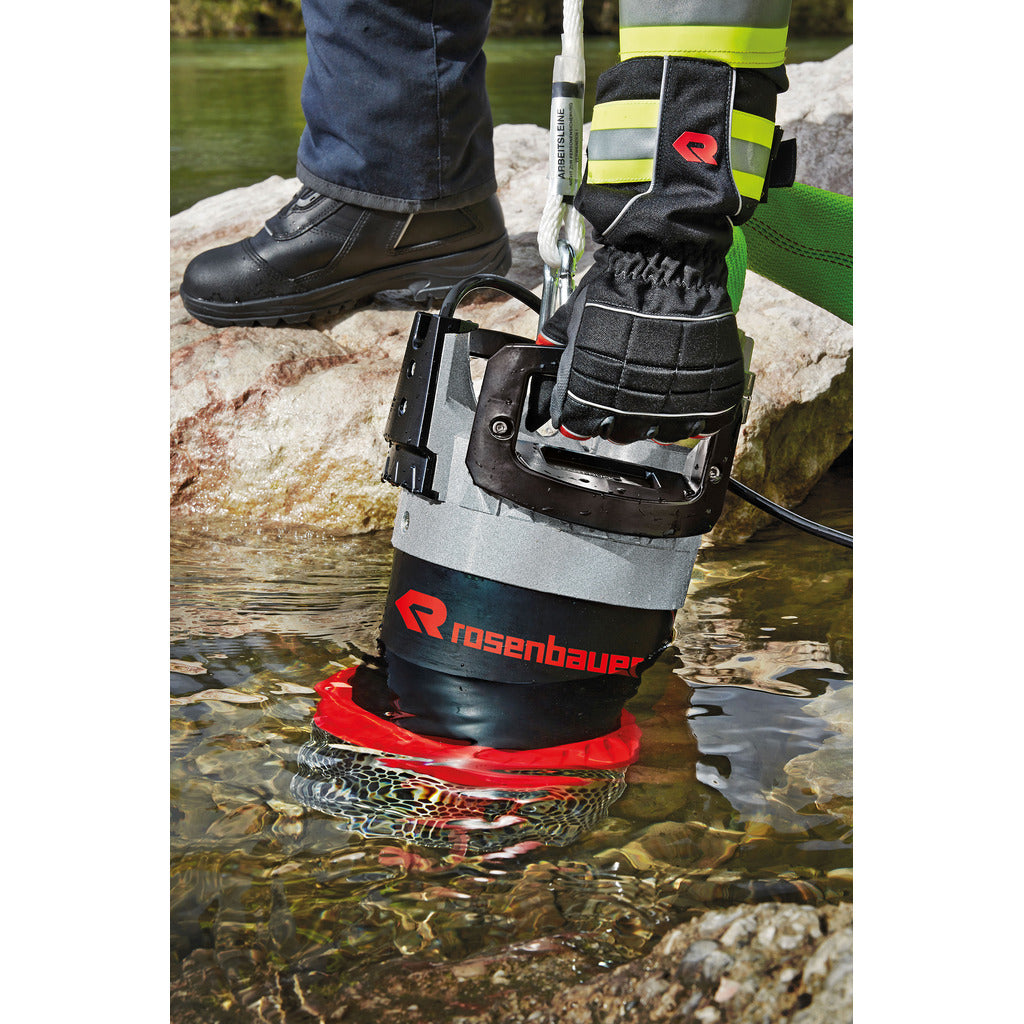

• Thanks to its ergonomically shaped carrying handles, the NAUTILUS submersible pump is easy and comfortable to carry by a single person as well as by two emergency personnel.

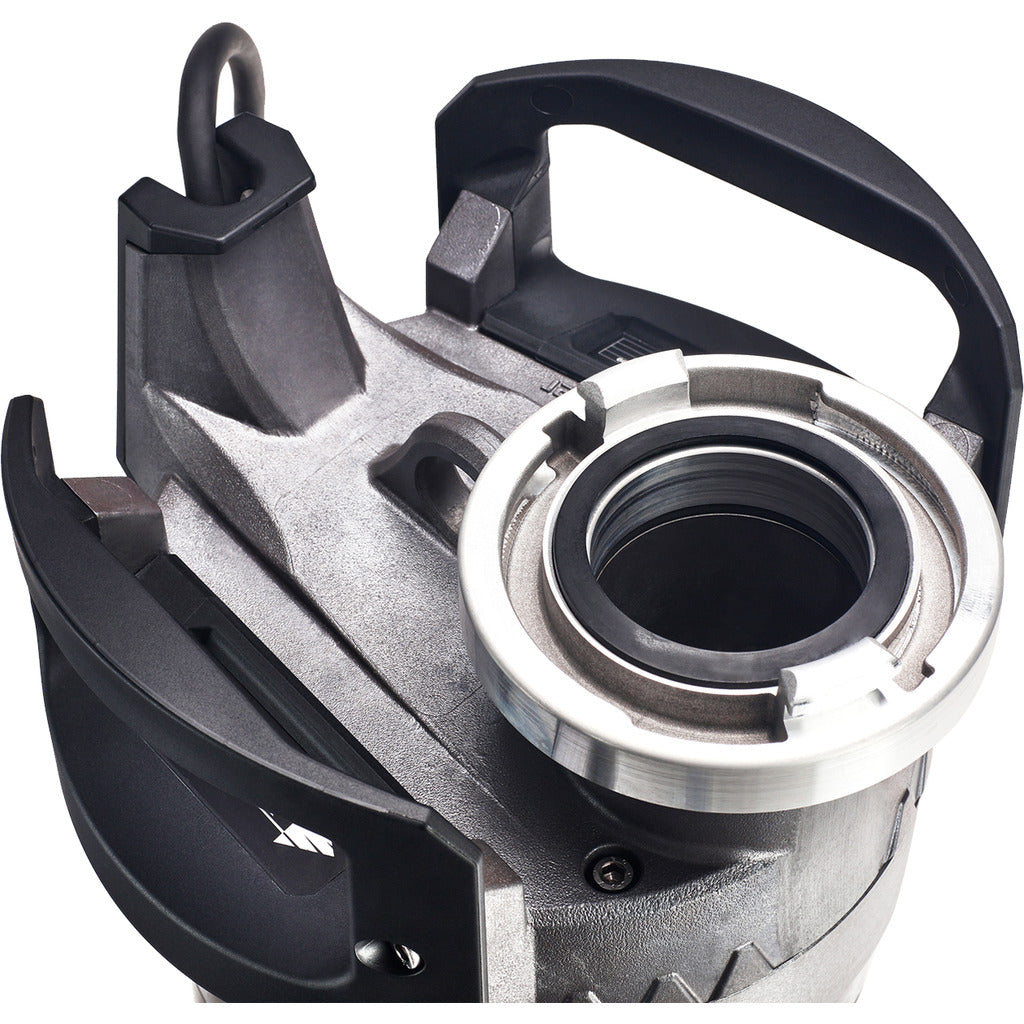

• The large carrying handles on the right and left of the pump cover are equipped with cold protection.

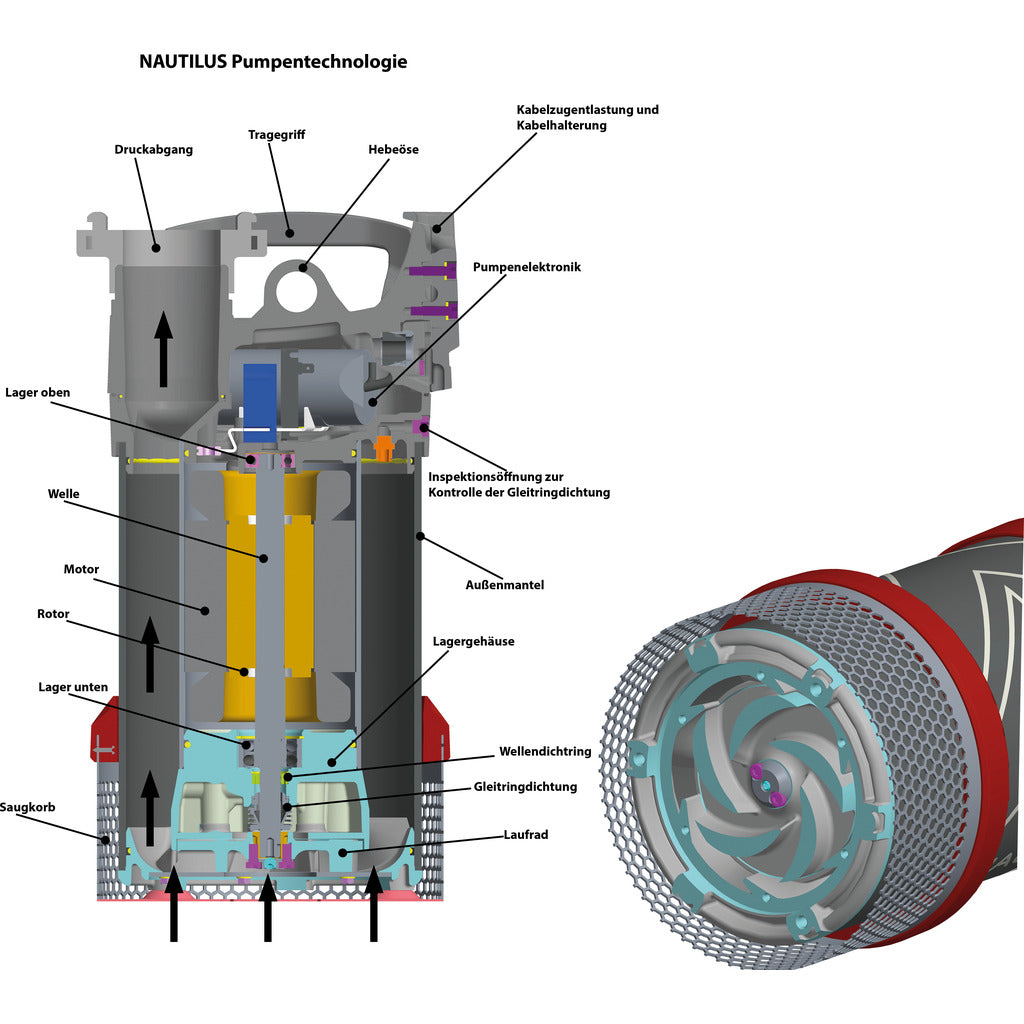

• 100% waterproof – thanks to the double seal, not a single drop of water can penetrate the motor housing or reach the electronics; an inspection opening in the wet zone allows for regular checks to ensure operational readiness.

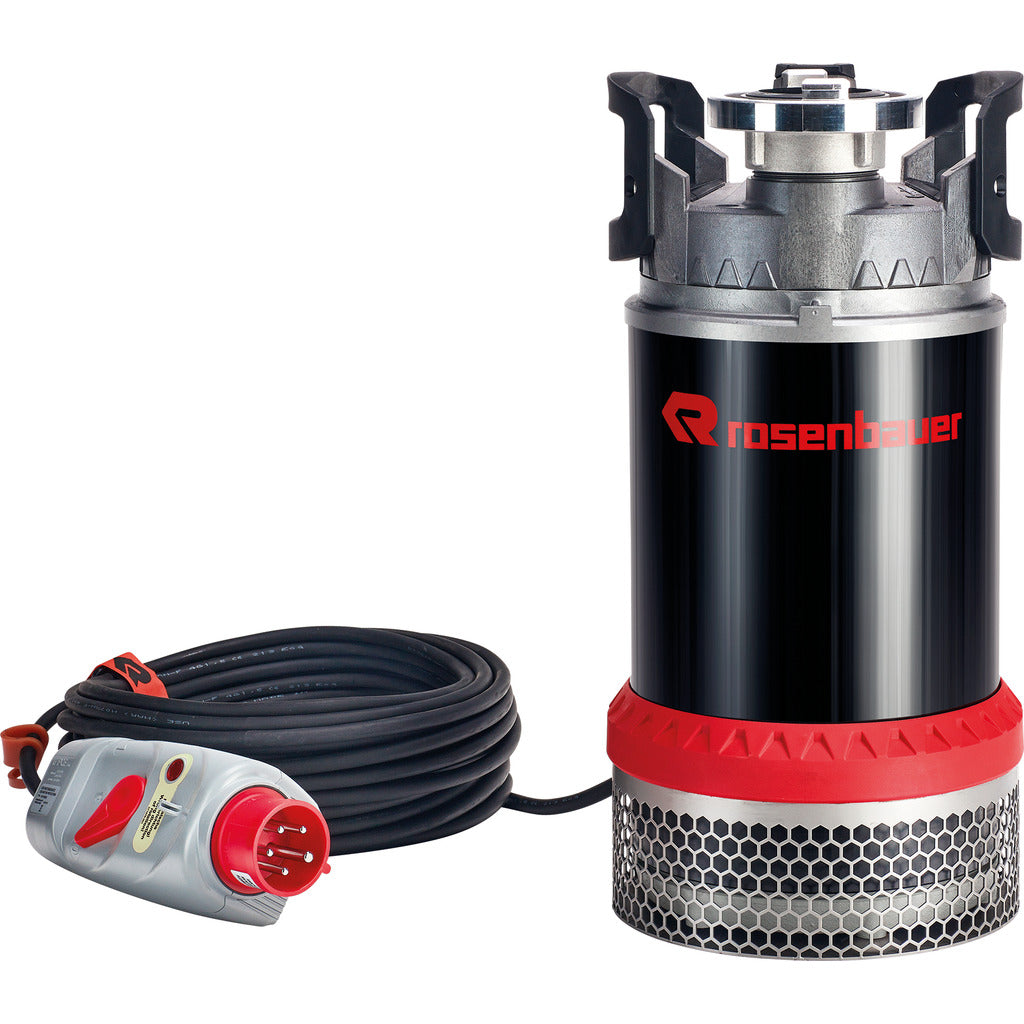

• The NAUTILUS submersible pump is equipped with a 20 m long cable type H07RN-F; the cable length ensures that there is no plug connection in the wet area; to prevent damage in the cable routing area, the pump cover features a cable holder including integrated strain relief.
• For maintenance work on the impeller, the pump is simply turned upside down without the need for a second person; since the suction strainer is fixed with only three screws, it can be easily removed to quickly clean the impeller of any jammed or stuck foreign objects; for maximum service life, the pump is simply rinsed with clean water after each use.

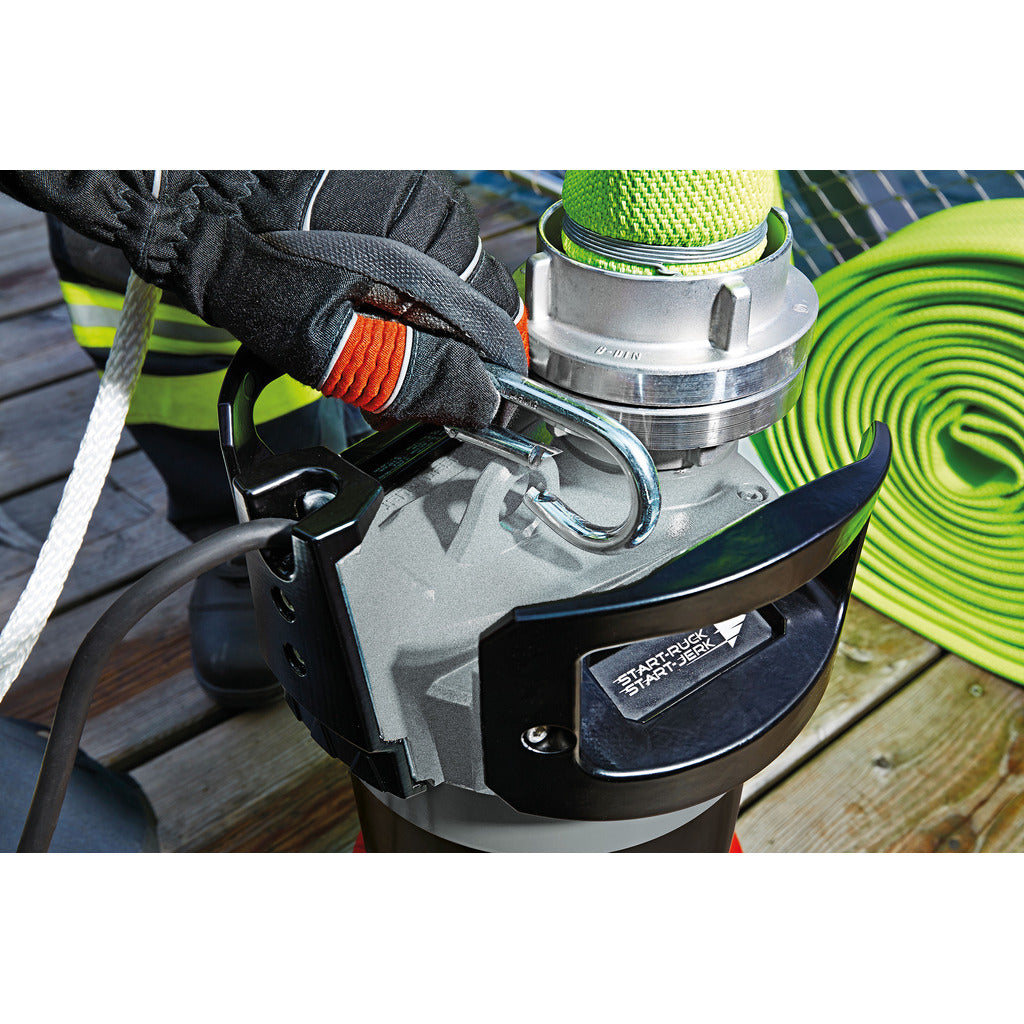

• with attachment loop for carabiner of the working line

Technical data:

• ON/OFF switch
• Indication for incorrect rotation direction and polarity reversal switch for reversing the direction of rotation
• Power consumption: 4.2 kVA cos phi 0.8
• Power output: 2.8 kW / Rated current: 6 A
• Pressure connection: G 2 1/2" AG

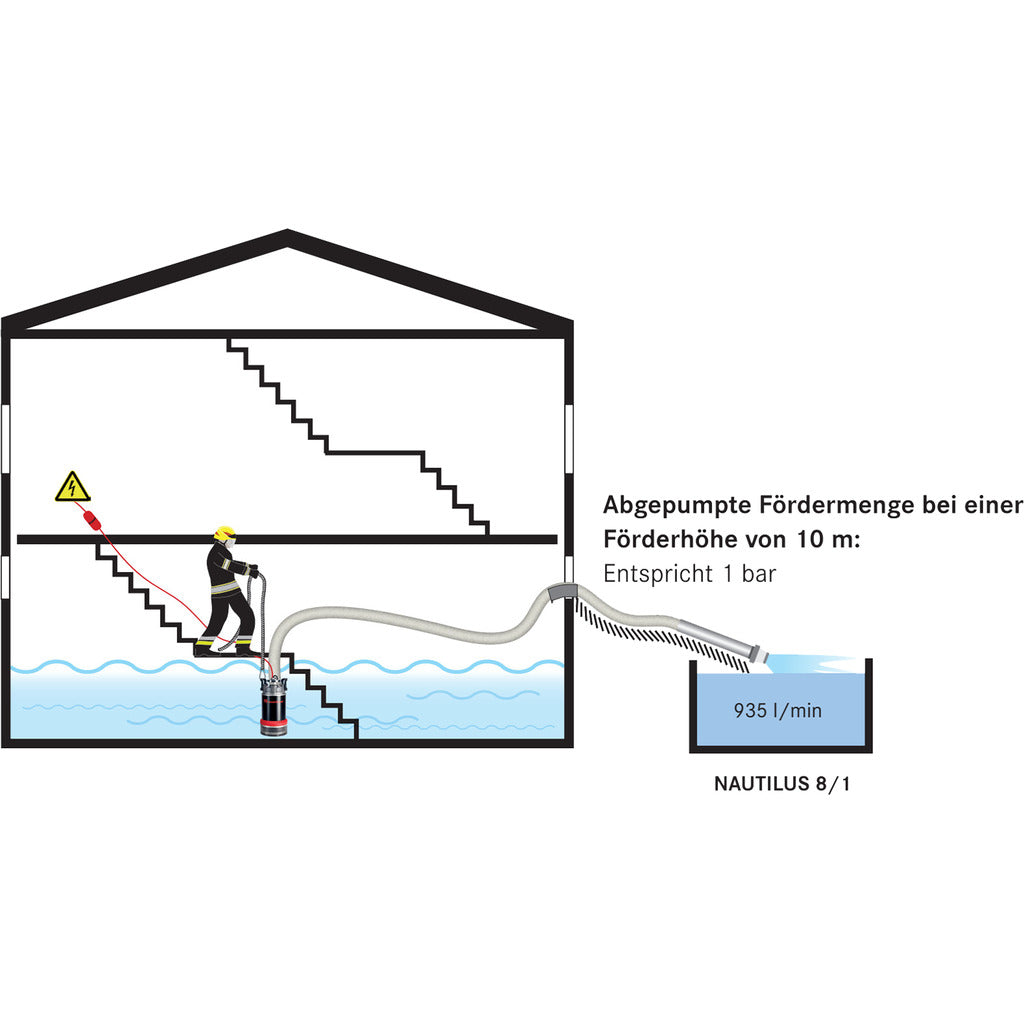

• Nominal flow rate: 800 l/min at 1 bar (= 10 m delivery head)
• Temperature of pumped medium: 0 to 35°C, briefly up to max. 60°C
• pH value of the pumped medium: 6 to 8

Performance data:

• Flow rate 1,330 l/min at 0 bar / Flow rate 1,170 l/min at 0.5 bar / Flow rate 935 l/min at 1 bar / Flow rate 600 l/min at 1.5 bar / Flow rate 120 l/min at 2 bar / Flow rate 0 l/min at 2.1 bar

• Connection voltage: 400 (3-phase) V
• Ø: 259 mm
• Maximum immersion depth: 18 m
• Frequency: 50 Hz
• Weight: 30 kg
• Height: 485 mm
• Insulation class: F (155°C)
• Cable length: 20 m
• Cable type: H07RN-F 4G1.5
• Brand: Rosenbauer
• Maximum grain size: 10 mm
• Residual water level: 8 mm
• Protection class: Pump without plug IP68
• Ambient temperature: -15 to 35 °C
