Multiple combination minimax c 30g TERSA
Multiple combination minimax c 30g TERSA is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipment
Shipment
Same-day shipping on weekdays for orders placed before 2 p.m. (except Fridays until 11 a.m.). Delivery time: approximately 1-3 business days in Austria and 2-4 business days in Germany.
Hersteller:
Aircraft compressors and
Machinery Wholesale GmbH (EDE)
Gewerbestraße Ost 6
4921 Hohenzell
AUSTRIA
http://www.aircraft.at
info@aircraft.at
Phone: 07752 70929-0
Bitte kontaktieren Sie für Fragen zum Produkt oder Ihrer Bestellung unseren Kundenservice.
support.shop@schmidts.at
Kein Sicherheitsdatenblatt verfügbar.
Description
Description

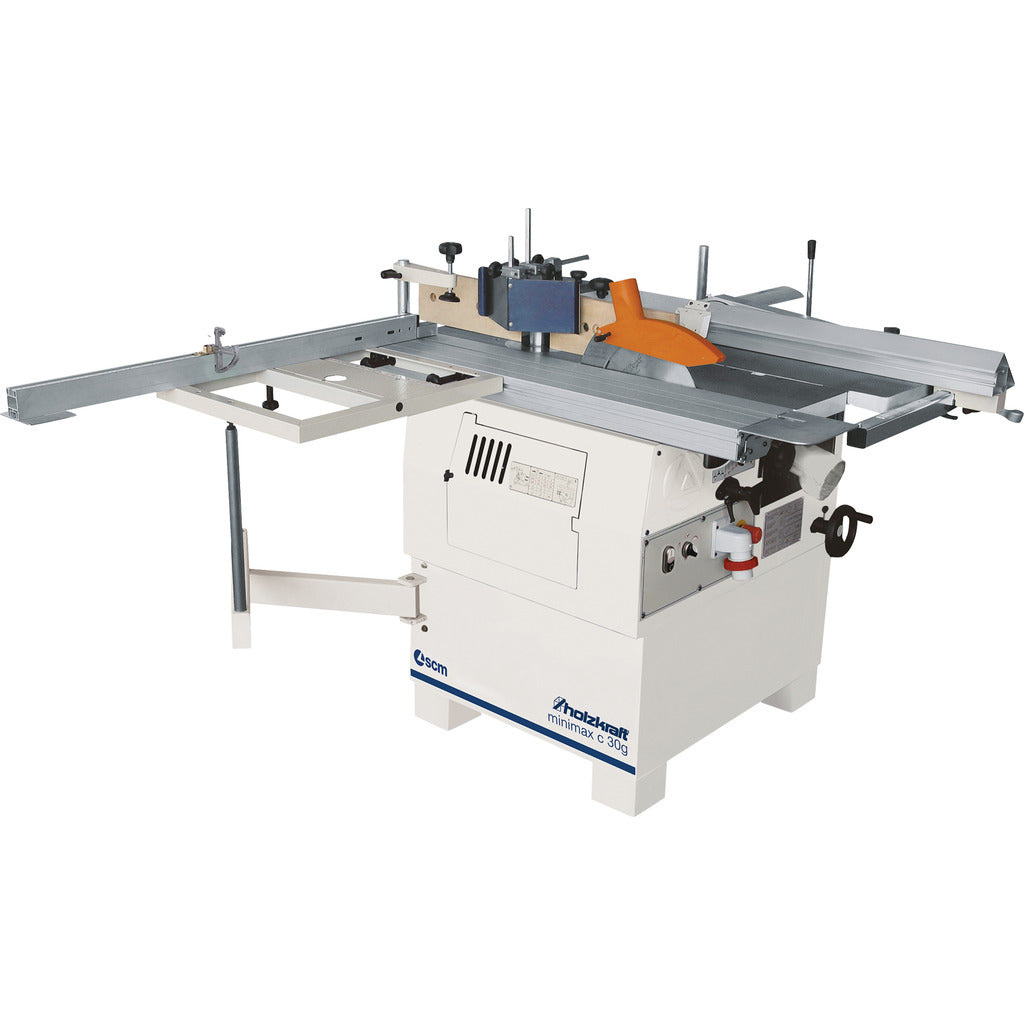

- Compact and universal - with aluminum sliding table and TERSA shaft for the demanding DIY enthusiast
- for sawing, milling, surface planing, thicknessing and optionally mortising
- The work tables made of heavily ribbed grey cast iron and the base frame made of welded steel guarantee torsional rigidity and vibration-free operation
- Unique in this performance class: smooth-running aluminum format sliding carriage, anodized, with ball contact system

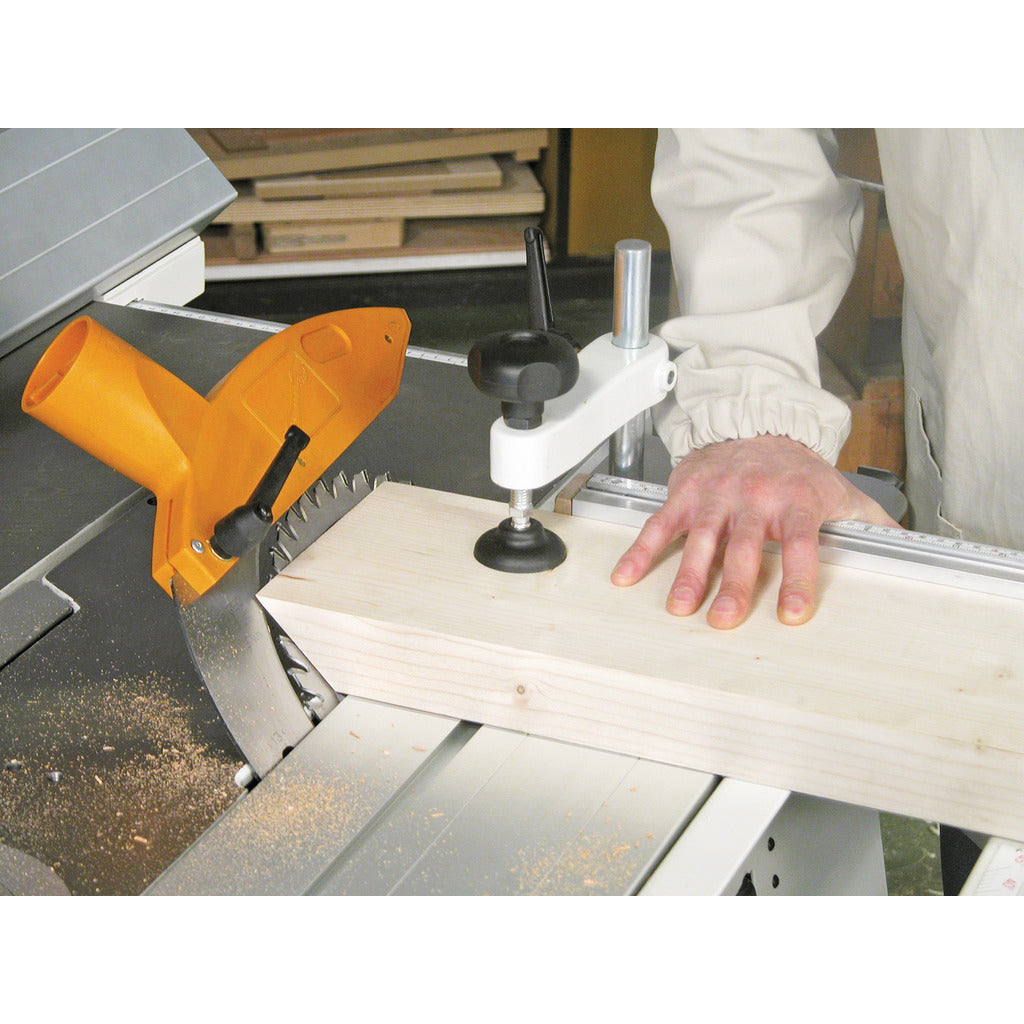

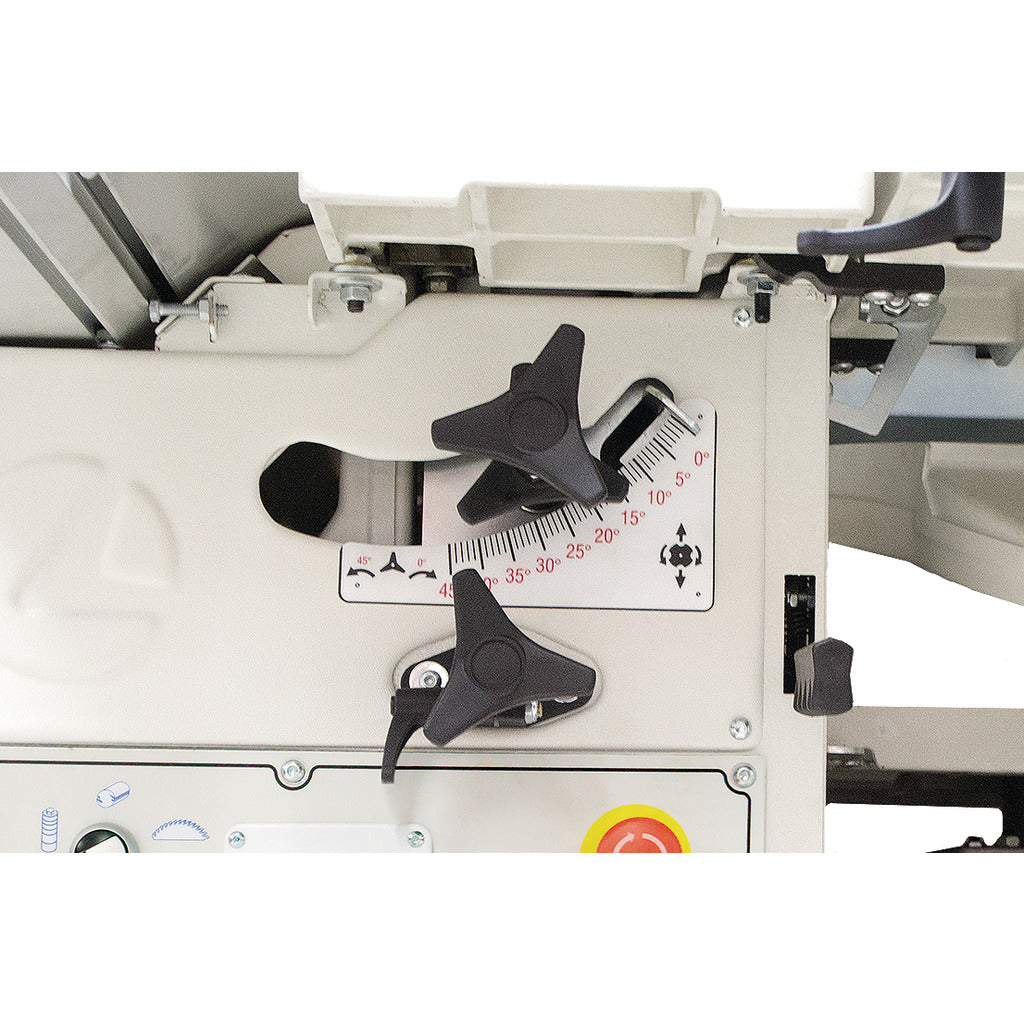

- swivel saw blade from 90° - 45°

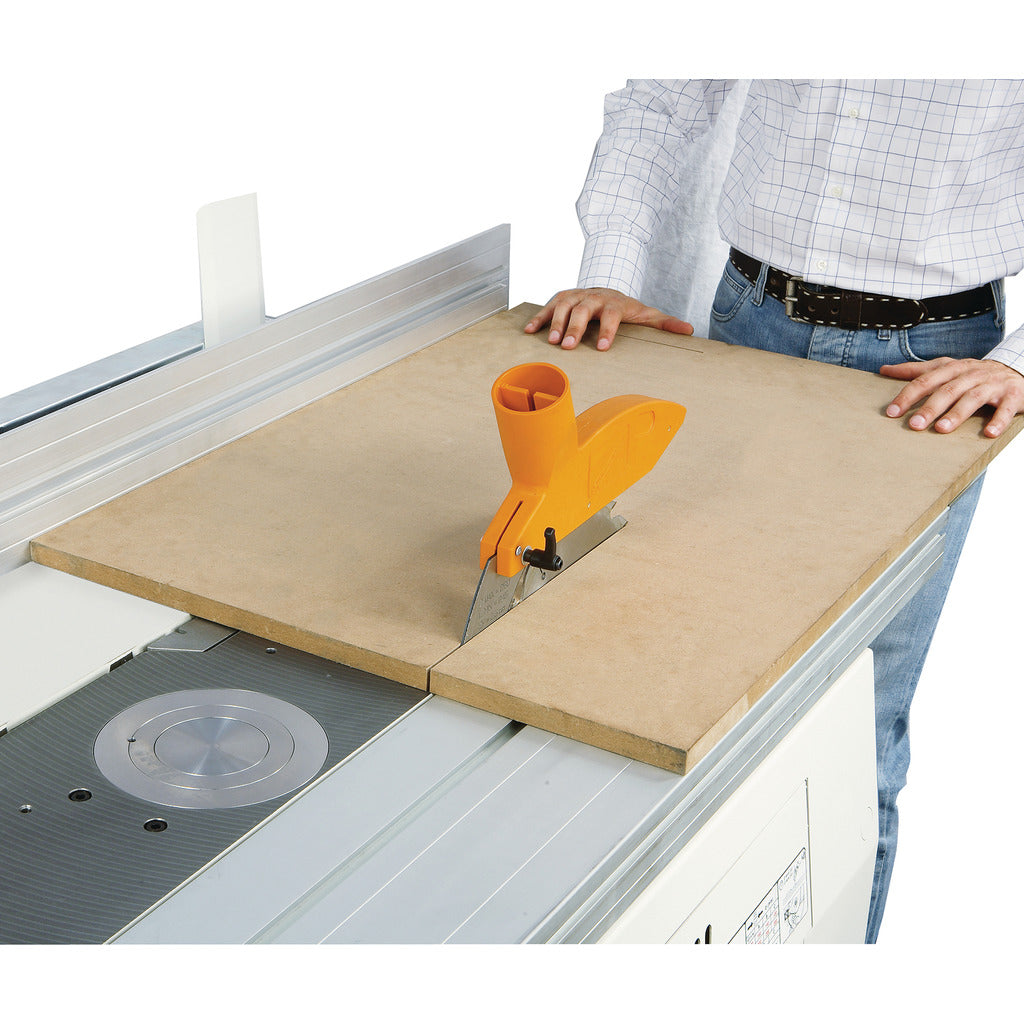

- Trimming frame with degree scale and aluminum crosscut stop for angle cuts on panels and large workpieces
- Planing unit with TERSA quick-change system with three planing knives

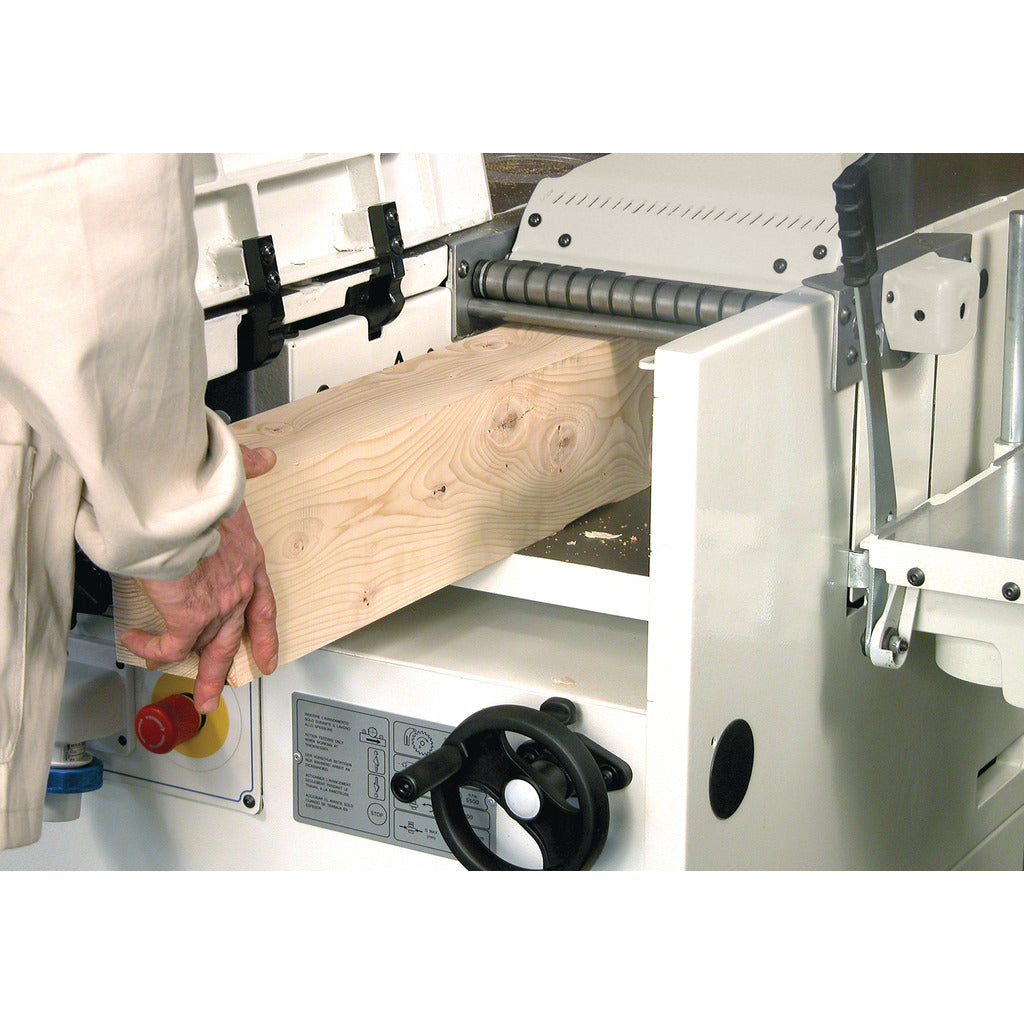

- helically toothed steel feed roller for constant workpiece feed during thickness planing

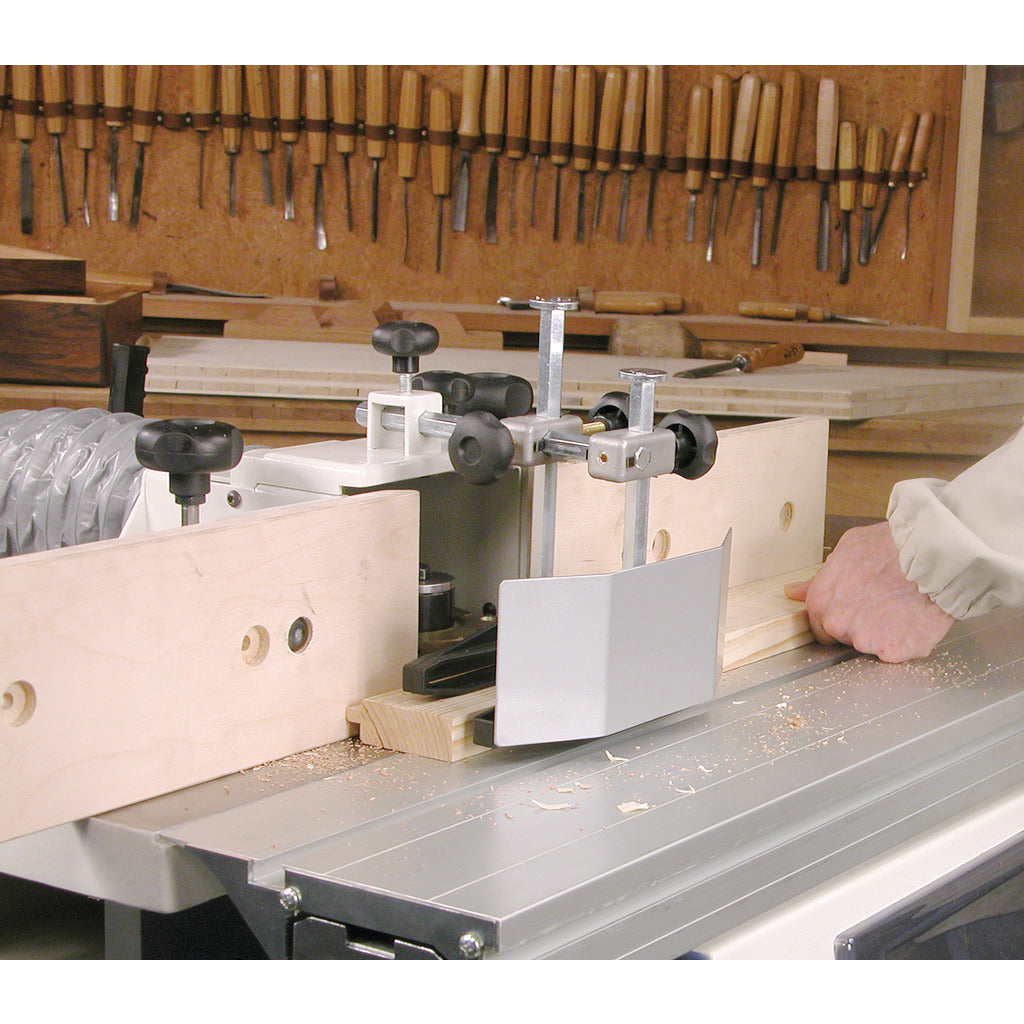

- Curved milling guard for profiling, standard with fine adjustment
- Milling unit with two speeds
- The units are driven by three independent motors
- Extraction nozzle diameter - 4 x 120 mm
- Extraction nozzle diameter saw blade guard - 60 mm
- Space requirement length - 2460mm
- Space requirement width/depth - 2155mm
- Format sliding carriage length - 1140mm
- Format sliding carriage width - 201mm
- Format sliding carriage height - 70mm
- Trimming length - 1200mm
- Cutting width with parallel stop - 540mm
- Max. cutting width left of saw blade - 1200mm
- max. saw blade projection 90° - 75mm
- Planer shaft diameter - 62mm
- Quality Made in Italy
- Connection voltage: 400 V
- Number of planer knives: 3 pieces
- Spindle speed: 5000 - 7500 min⁻¹
- Spindle diameter: 30 mm
- Frequency: 50 Hz
- Weight: 245 kg
- Power: 3 x 1.8 kW
- Brand: holzkraft blue
- Max. cutting depth at 45°: 40 mm
- Max. cutting depth at 90°: 67 mm
- Spindle head tilt range: 0 °
- Table size: 380 x 207 mm
- Feed rate: 6 m/min
